Canada Glacier from Lake Fryxell Sculpture and Photograph

Made with Digital 3D Scanning and Fabrication Technology

Photographs shot on site are turned into 3D scans via photogrammetry, a process whereby a series of still photos of a scene can be assembled by software into a three-dimensional scan. With further editing in 3D modeling software, the scans become the basis for painted sculptures made with digital fabrication technologies such as CNC routers or 3D printers.

Watch a YouTube video showing the process of making the "Bird" Ventifact sculpture.

Shown below are sculptures and source photos from which the 3D files were made.

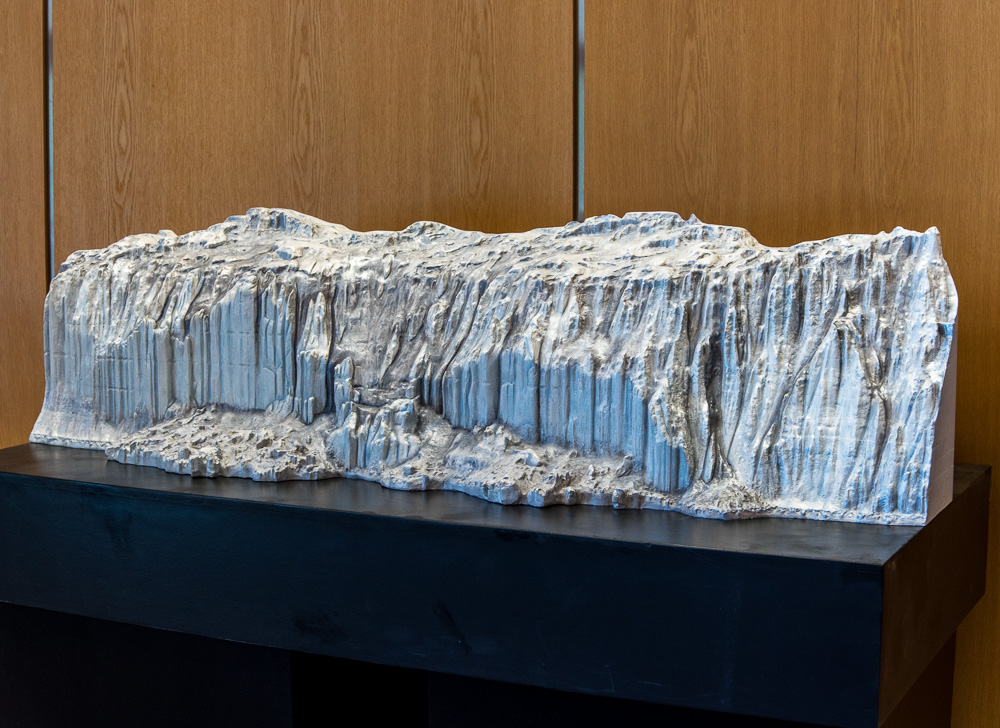

Slide "Canada Glacier from Lake Fryxell, Antarctica" (2016-17)
acrylic, oil and wax on high density urethane
15.5 x 60 x 17.5 inches
Canada Glacier from Lake Fryxell, Antarctica (2016-17), acrylic, oil and wax on high density urethane, 15.5 x 60 x 17.5 inches
Slide "Canada Glacier from Lake Fryxell, Antarctica" (2015)
(source photo for the sculpture)
archival pigment print
32.5 x 50 inches
Canada Glacier from Lake Fryxell, Antarctica photograph 2015 32.5 x 50 inches
Slide "Canada Glacier from Lake Fryxell, Antarctica"
photograph and sculpture displayed at Towers Crescent Building, Tysons Corner, VA, in 2019
Canada Glacier from Lake Fryxell photo and sculpture displayed at Towers Crescent Building, Tysons Corner, VA in 2019
Slide "Canada Glacier from Lake Fryxell"
Site photographed for the sculpture is on the left side in this photo, centered over the lake.
Panorama of Canada Glacier from Lake Fryxell, Antarctica photograph 2015 16.5 x 73 inches

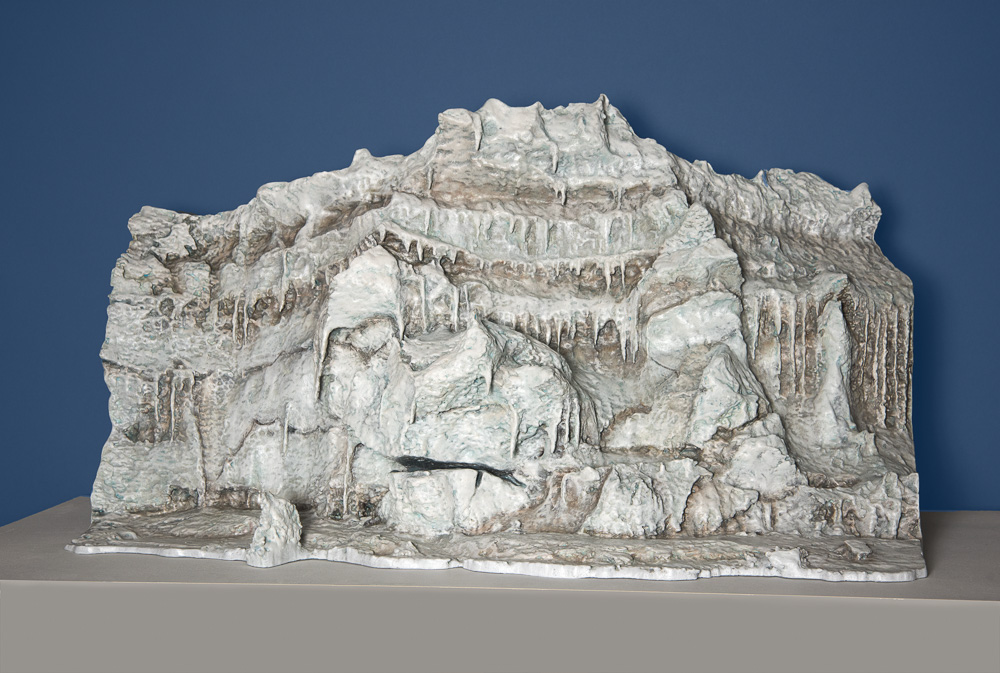

Slide "'Giant's Face' Pressure Ridge, McMurdo Sound, Antarctica" (2017-19)
acrylic on 3D-printed PLA plastic and polymer-modified gypsum
19.5 x 36 x 15.5 inches
Giants Face Pressure Ridge
Slide "'Giant's Face' Pressure Ridge,
McMurdo Sound" (2015)
(source photo for the sculpture)
archival pigment print
22 x 15.675 inches

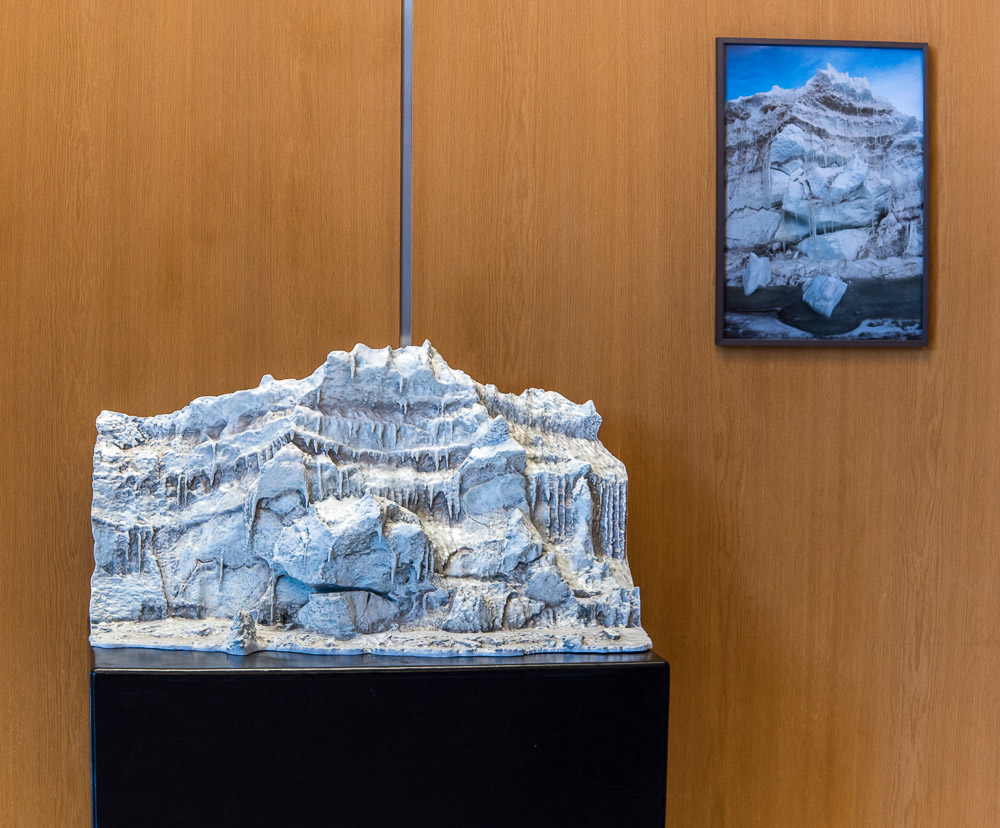

Slide "Giant's Face" Pressure Ridge" sculpture and photograph
display at Towers Crescent Building, Tysons Corner, VA (2019)

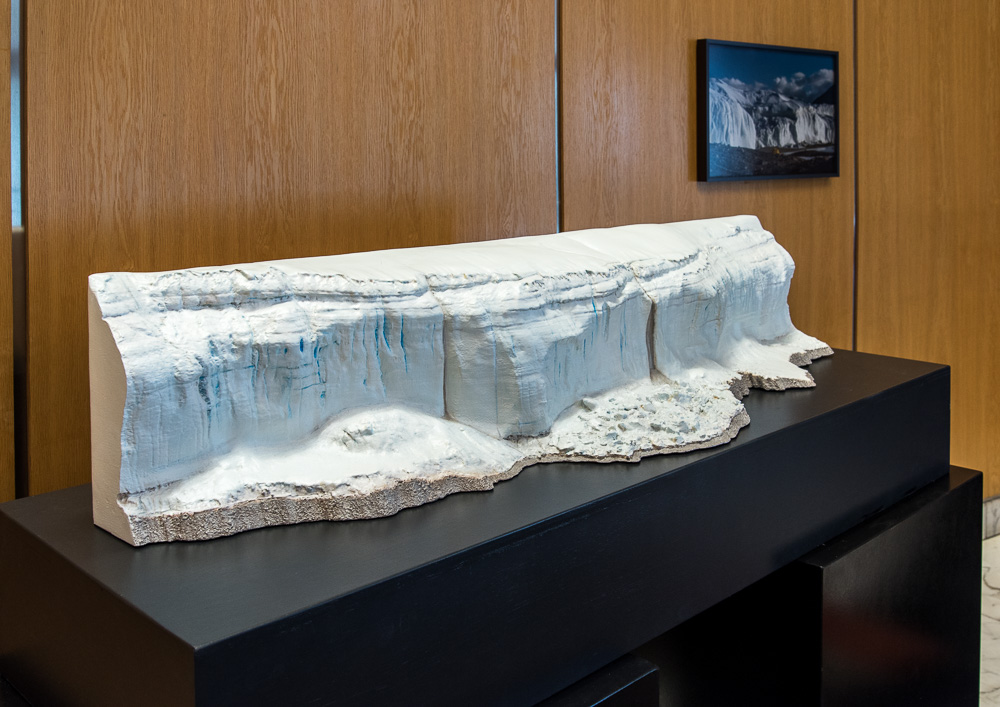

Slide "Canada Glacier from Lake Hoare, Antarctica" (2017)
acrylic on 3D-printed PLA plastic
11 x 54 x 15.5 inches
Canada Glacier from Lake Hoare, Towers Crescent Building, Tysons Corner, VA
Slide "Canada Glacier from Lake Hoare, Antarctica" (2017)
photograph
Canada Glacier and Sandbags, Lake Hoare, Antarctica (2015), photograph

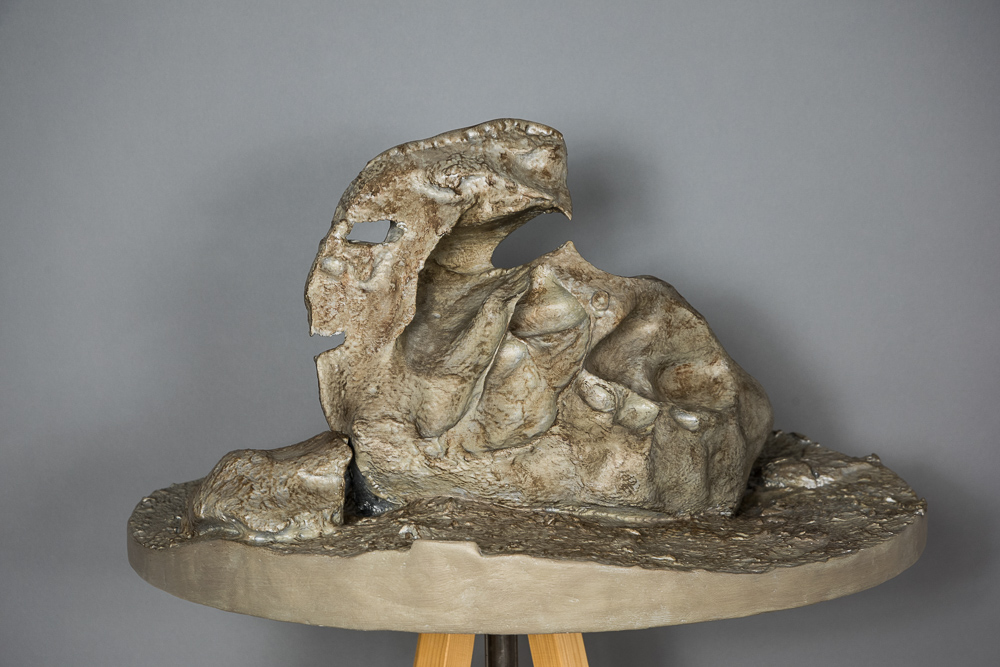

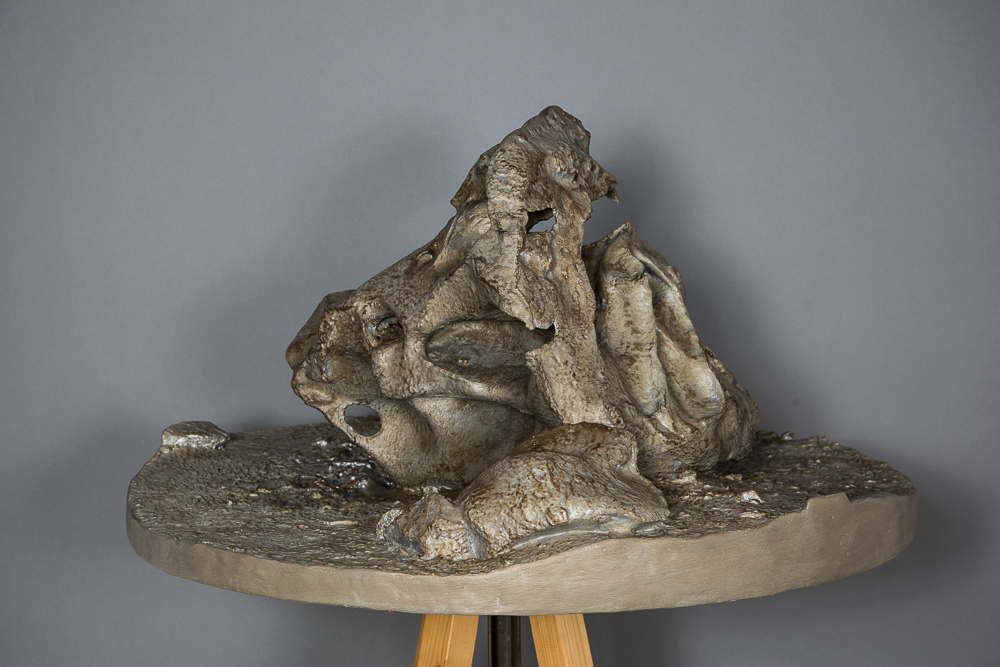

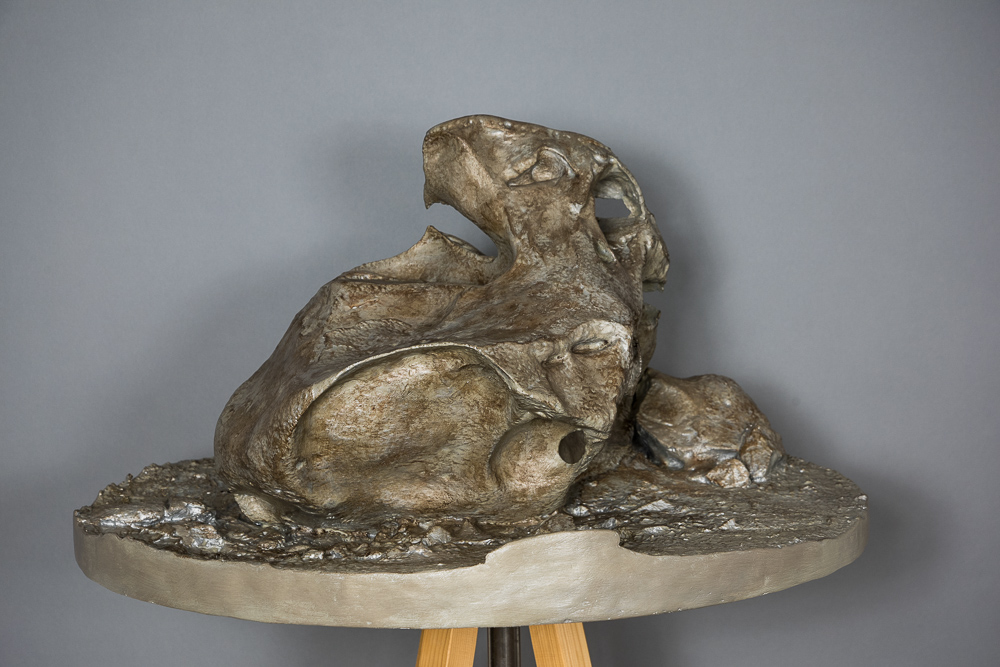

Slide "'Bird' Ventifact, Dry Valleys, Antarctica" (2016)
acrylic on 3D-printed PLA plastic and polymer-modified gypsum
16 x 29.5 x 29.5 inches

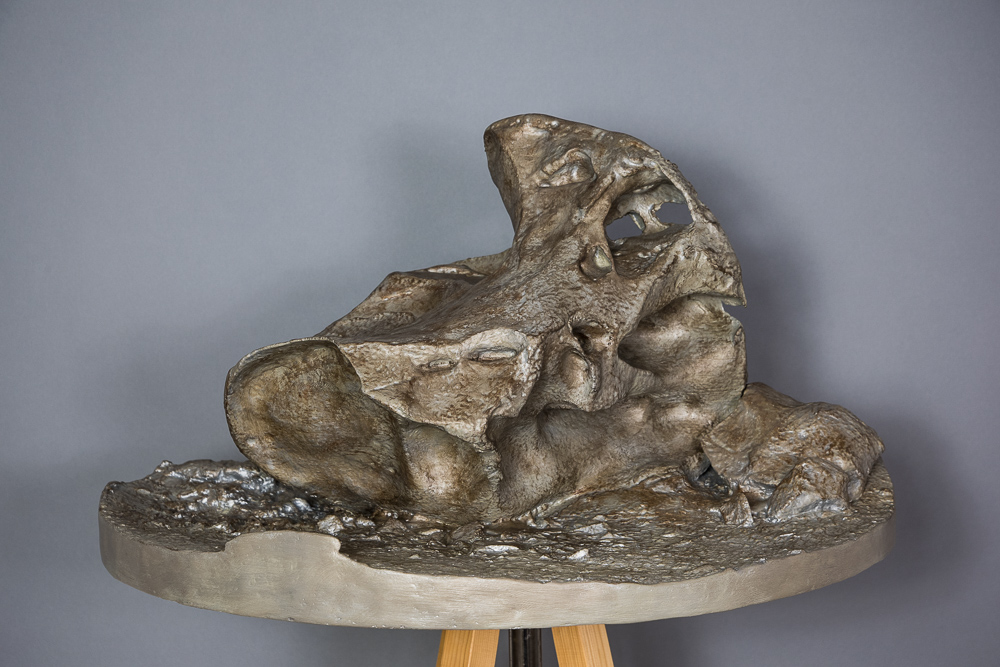

Slide "'Bird' Ventifact, Dry Valleys, Antarctica" (2016)
acrylic on 3D-printed PLA plastic and polymer-modified gypsum
16 x 29.5 x 29.5 inches
Slide "'Bird' Ventifact, Dry Valleys, Antarctica" (2015)
(source photo for the sculpture)
archival pigment print
14.75 x 22 inches

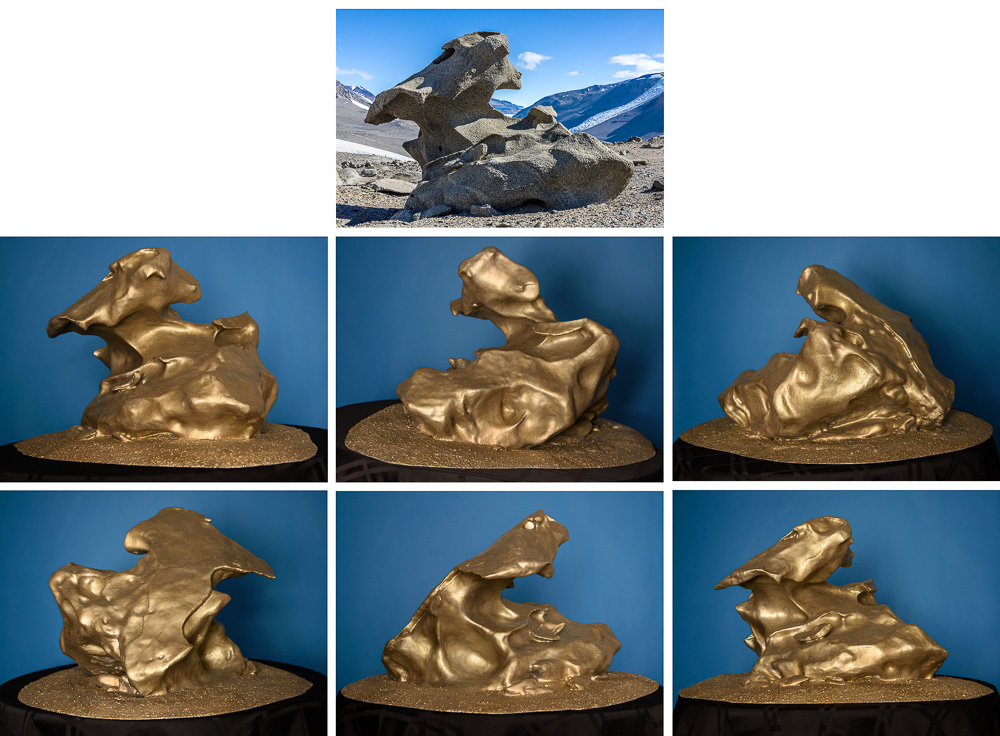

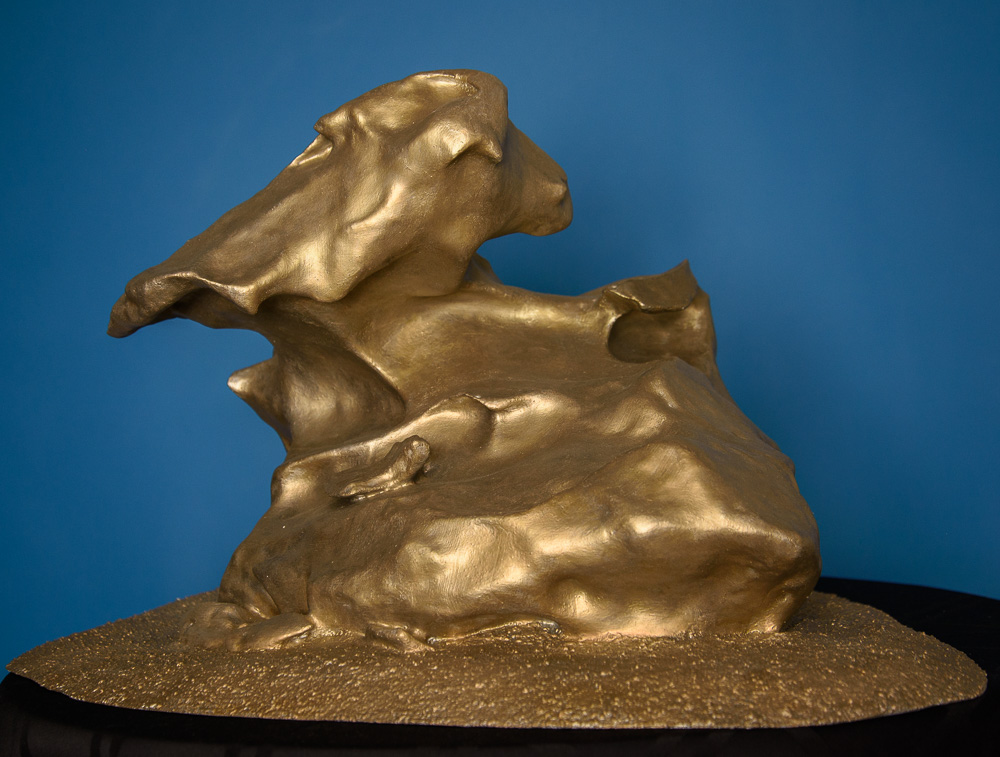

Slide Pterodactyl Ventifact Sculpture, six views and source photo "'Pterodactyl' Ventifact, Dry Valleys, Antarctica" (2019)
acrylic on 3D-printed PLA plastic
16 x 24.5 x 29.5 inches
Slide "'Pterodactyl' Ventifact, Dry Valleys, Antarctica" (2019)
acrylic on 3D-printed PLA plastic
16 x 24.5 x 29.5 inches
Pterodactyl Ventifact Sculpture
Slide "'Pterodactyl' Ventifact, Dry Valleys, Antarctica" (2015/2019)
(source photo for the sculpture)
archival pigment print
12 x 18 inches
Slide "Totem (Indian Laurel Fig Tree,
Los Angeles) (2018)
acrylic on 3D-printed PLA plastic
8 x 6 x 6 inches, ed. 1/3
Private Collection, Lincoln, NE
Totem Sculpture, four views Helen Glazer, Totem

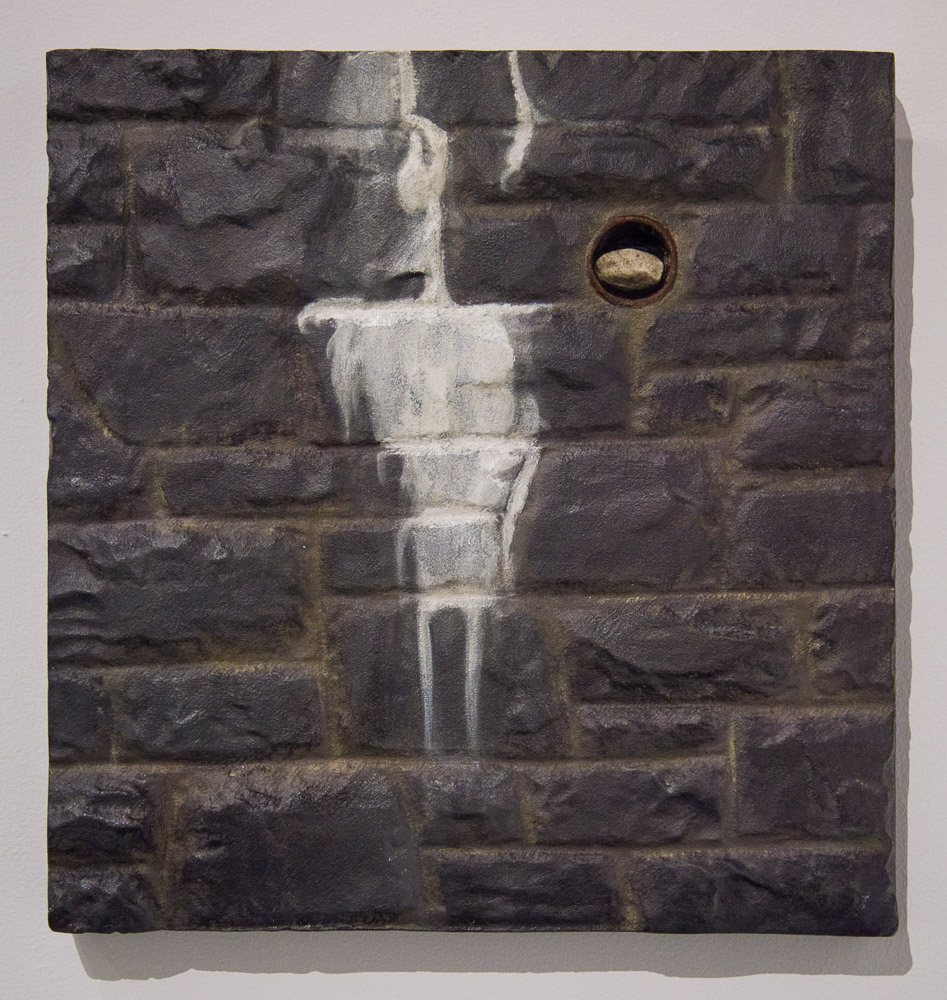

Slide "Glyndon Karst Cave Painting" (2015)
acrylic and oil on high-density urethane foam
16 x 15.5 x 1.75 inches
Using photogrammetry, I made a
scan of a portion of the wall where
the white crystal formations have
painted a form that resembles a
prehistoric cave painting.
Glyndon Karst source photograph

Background: My interest in digital 3D technology grew out of an ambition to convey the idea of the natural world as a dynamic system, where any given form in nature is a product of the complex physical forces at work in the particular conditions of the moment. In 2007 I approached a 3D imaging firm and we embarked on an experiment to see if we could translate one of my photographs of clouds into a relief sculpture. The sculpture, titled Rise, began with a high-resolution digital photograph of a cloud formation, with tonal adjustments to bring out maximum detail. I directed a technician as he created a digital 3D file from the 2D image. A virtual sculpture took shape on the screen, in a process that resembles inflating and deflating the form. The resulting 3D file was sent to a prototyping firm, where it was milled in polystyrene foam on a CNC router. A mold was made from the foam model and it was cast in polymer-modified gypsum and painted. But it was expensive to produce and the computing power and technical barriers to working on my own files caused me to set the idea aside and focus on photographic prints.

The field of digitally aided 3D design evolved to the point where I felt that I could resume my photo-into-sculpture explorations in 2013. A new technology called photogrammetry became available, enabling me to translate a series of still photographs directly into 3D files, without the guesswork involved in producing Rise. I have gained proficiency in the use of photogrammetry and 3D editing software, and joined a community digital fabrication facility where I have access to CNC routers and 3D printers. After much perseverance in working out technical issues, I have developed a workflow to translate my photographs into sculpture of increasingly large and complex landscape forms, to the point where I have recreated features such as the side of a massive glacier or the complex surface of a wind-eroded boulder, and created the first works based on photogrammetry in the over 30 years of the National Science Foundation Antarctic Artists and Writers Program. I am continually building my skills in 3D modeling and streamlining the process of translating the raw photogrammetry files into compelling works of art.
